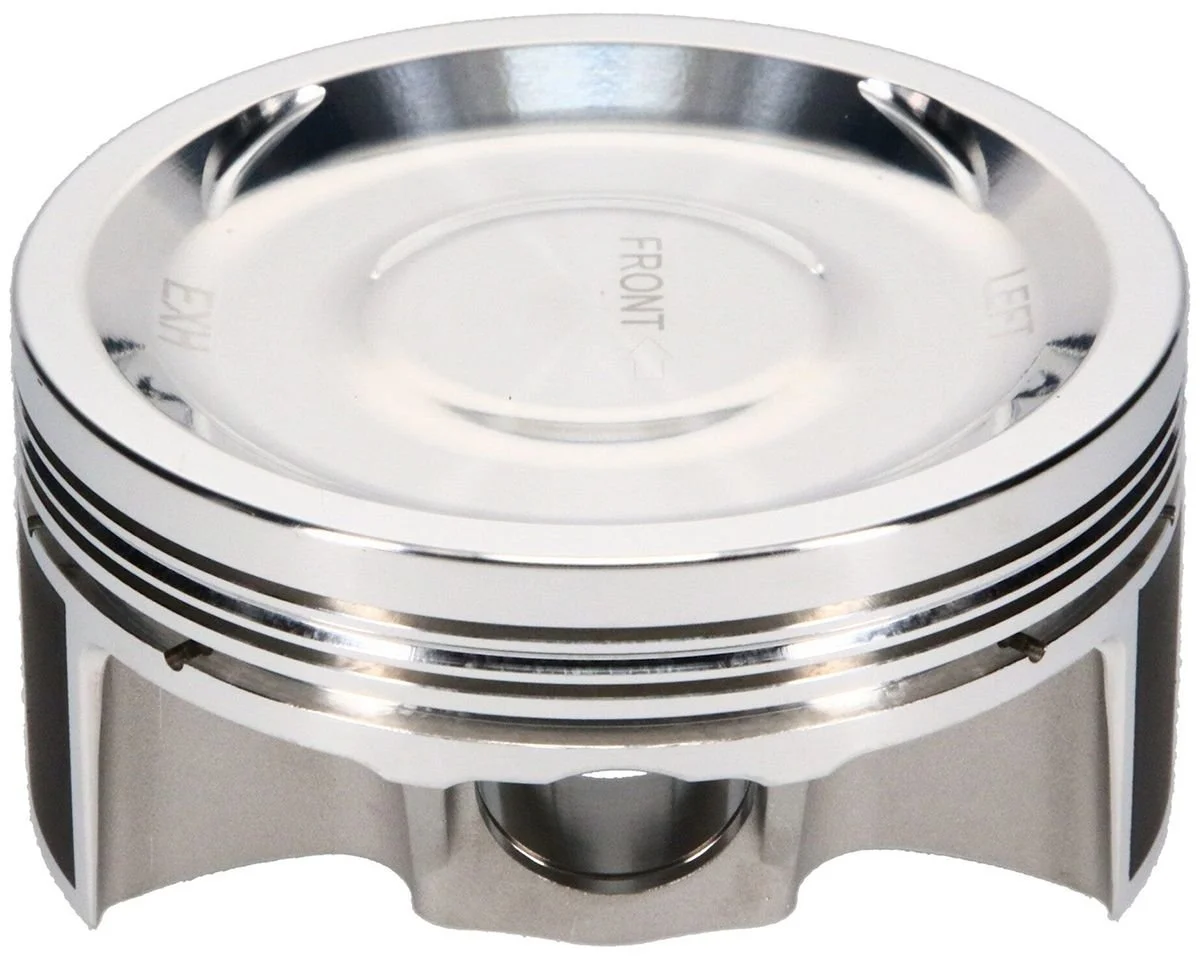

Forged Piston & Ring Kit, 99.5mm Bore (-25.5ccDish) Subaru EJ25 Block with EJ20 Head, 79mm Stroke, 130.5mm Rod Length
This piston set is forged from 2618 T6 high tensile strength aluminium and is engineered for high horsepower Subaru engines. Features include Forged Side Reliefs (FSR) and smooth flowing radii.
Includes:
.905 x 2.250 straight wall carbon steel wrist pin
1.2x1.2x2.5mm rings
Pin fitting
Wire locks
Specifications:
Part #: J291059
Bore: 99.5mm
Oversize: STD
Stroke: 79.0mm
Rod Length: 130.5mm
Compression Height: 30.7mm
Chamber Volume: 48.0cc
Compression Ratio with .040" Head Gasket: 8.5:1
Dome Volume: -25.5cc
Gram Weight: 411
Footnote: Accepts Turbo and Nitrous
Skirt: Forged Side Relief
Included Ring Set: JC3104-3917
With over 60 years of experience, JE Pistons is leader in high performance forged pistons. We've built a reputation that the competition can only follow. JE has a history of manufacturing the highest quality pistons and components that professional engine builders, race teams, and high performance enthusiasts trust and rely on.
The top engine builders in NASCAR, ALMS, NHRA, AMA Supercross and others choose JE Pistons over any other brand. For over 60 years, JE's position at the forefront of performance piston manufacturing has been a result of continuous research and development of unique materials, piston designs and technologies. Utilising State-Of-The-Art CNC machines for manufacturing along with purpose-designed forgings, JE is able to maintain exacting specifications on each and every piston and hold tolerances to millionths of an inch. Also available from JE is industry-leading processes like Ultra Crown, a Digital Three Dimensional piston crown machining process and Finite Element Analysis (FEA). FEA is a computer process whereby stress andfatigue are tested on a computer model before it goes into production. JE is the only performance piston manufacturer to earn the QS-9000 quality standard which confirms that JE provides customers the highest standards in quality control. In addition, we also have State-Of-The-Art inspection equipment and testing equipment which enables us to constantly bring you, the customer, the very latest in piston design configurations.
